2D SDF – Advanced Shapes

Material Function Library UE5

The last piece of my 2D SDF library.
All of the advanced shapes you can see in this post are coming from Indigo’s Article (+ShaderToy), please check it out:
2D distance functions

I’ve only recreated them in Unreal’s Material Graph using nodes, it was a lot of fun and a great way to learn more about hlsl and glsl
If you want to know more about Sign Distance Fields please check out my blog posts about it, here’s the first introductory one:
2D SDF – Basic Shapes and Visualization – Material Function Library

Rounded Rectangle – Material Graph

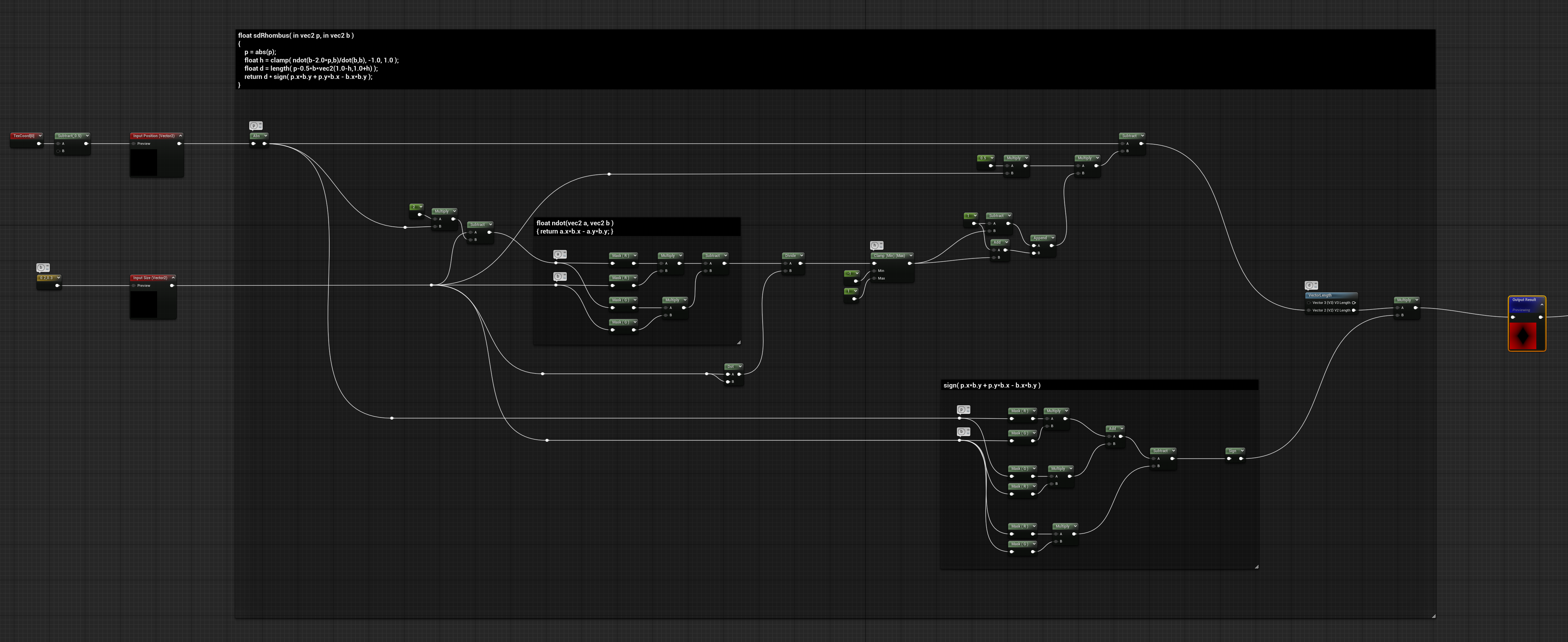

Rhombus – Material Graph

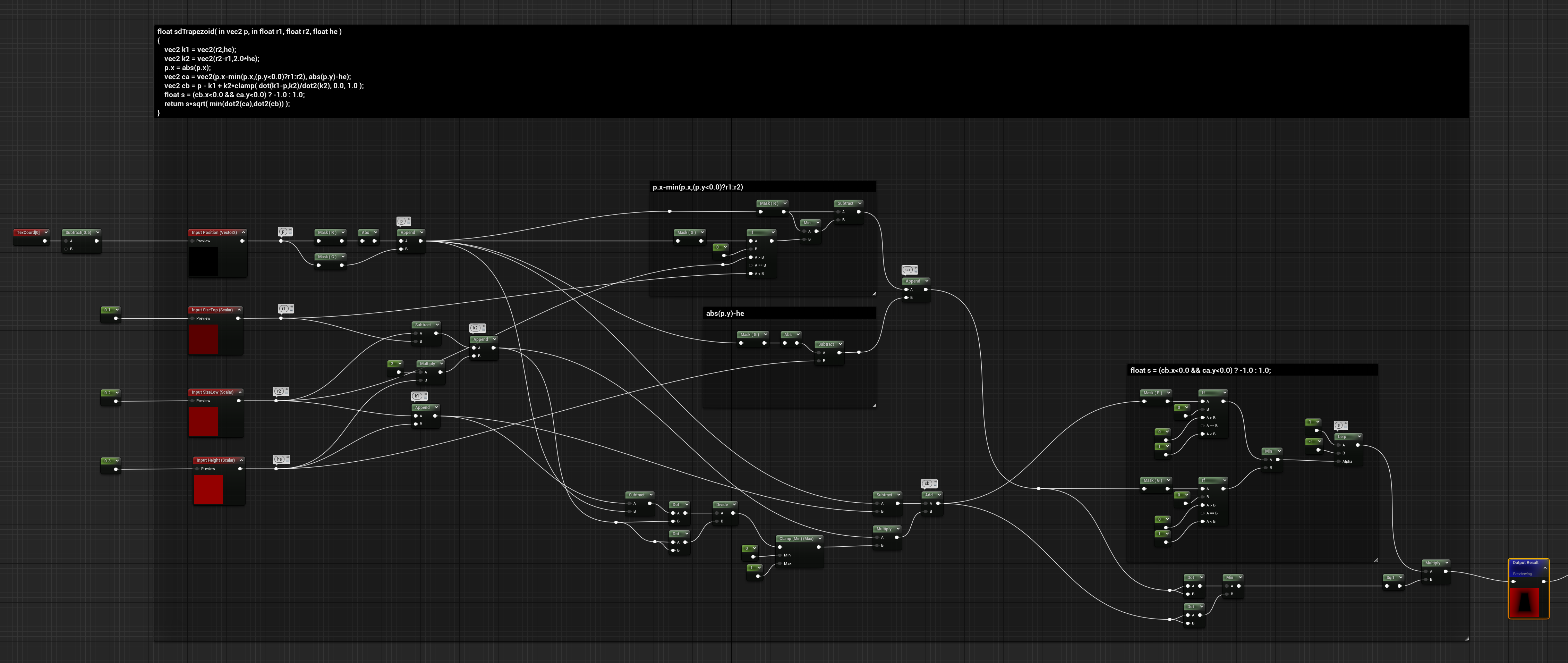

Isosceles Trapezoid – Material Graph

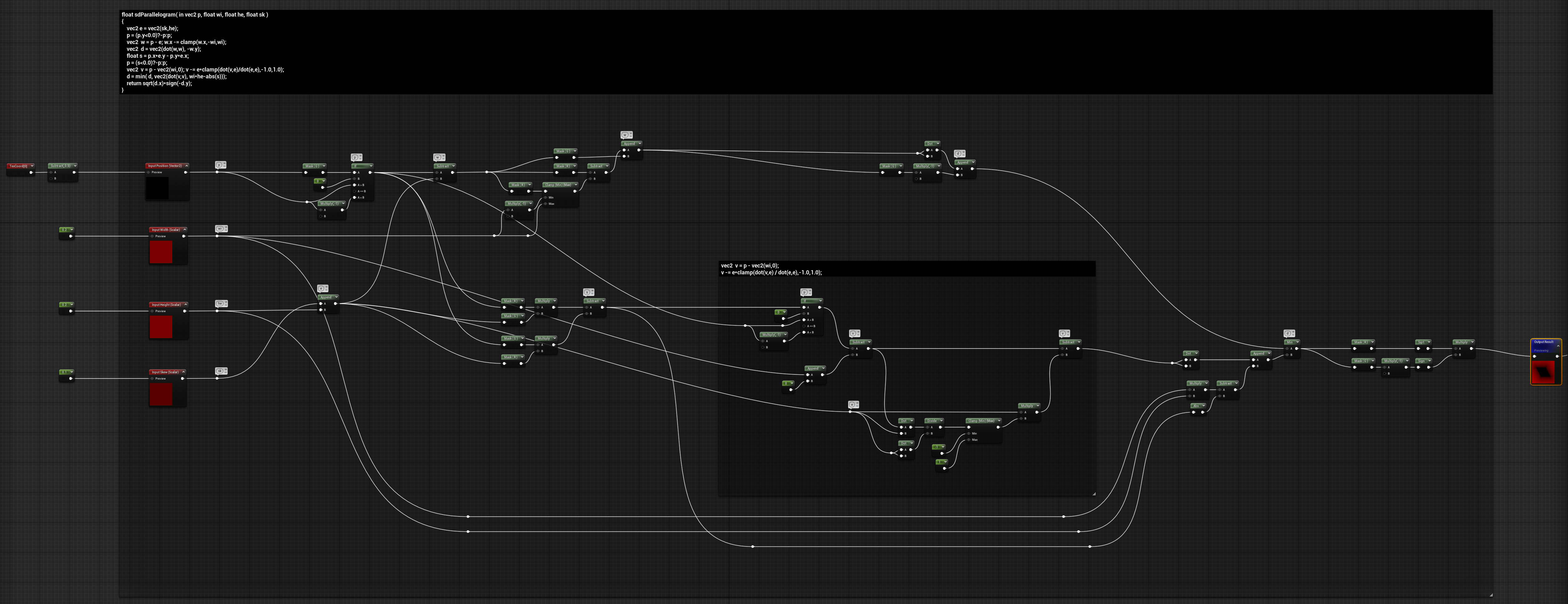

Parallelogram – Material Graph

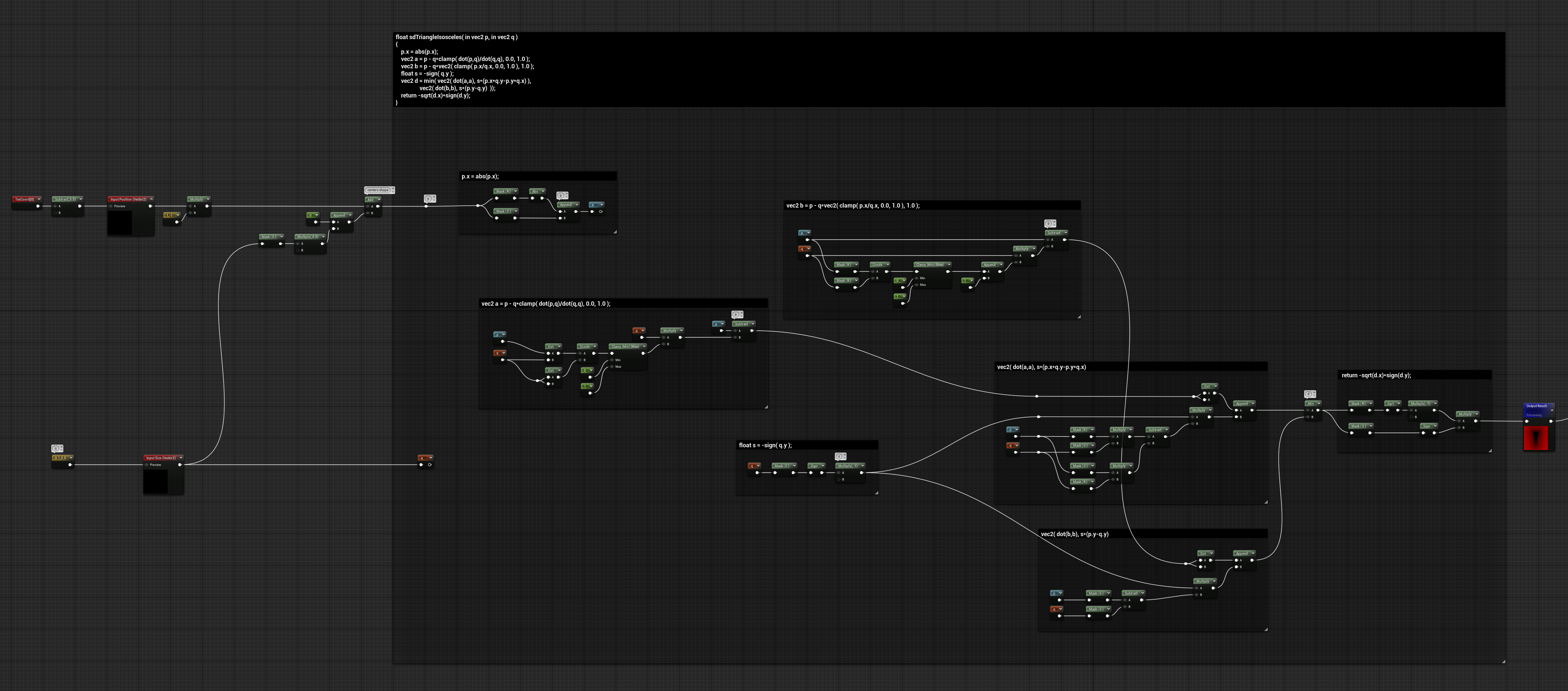

Isosceles Triangles – Material Graph

Triangle Exact – Material Graph

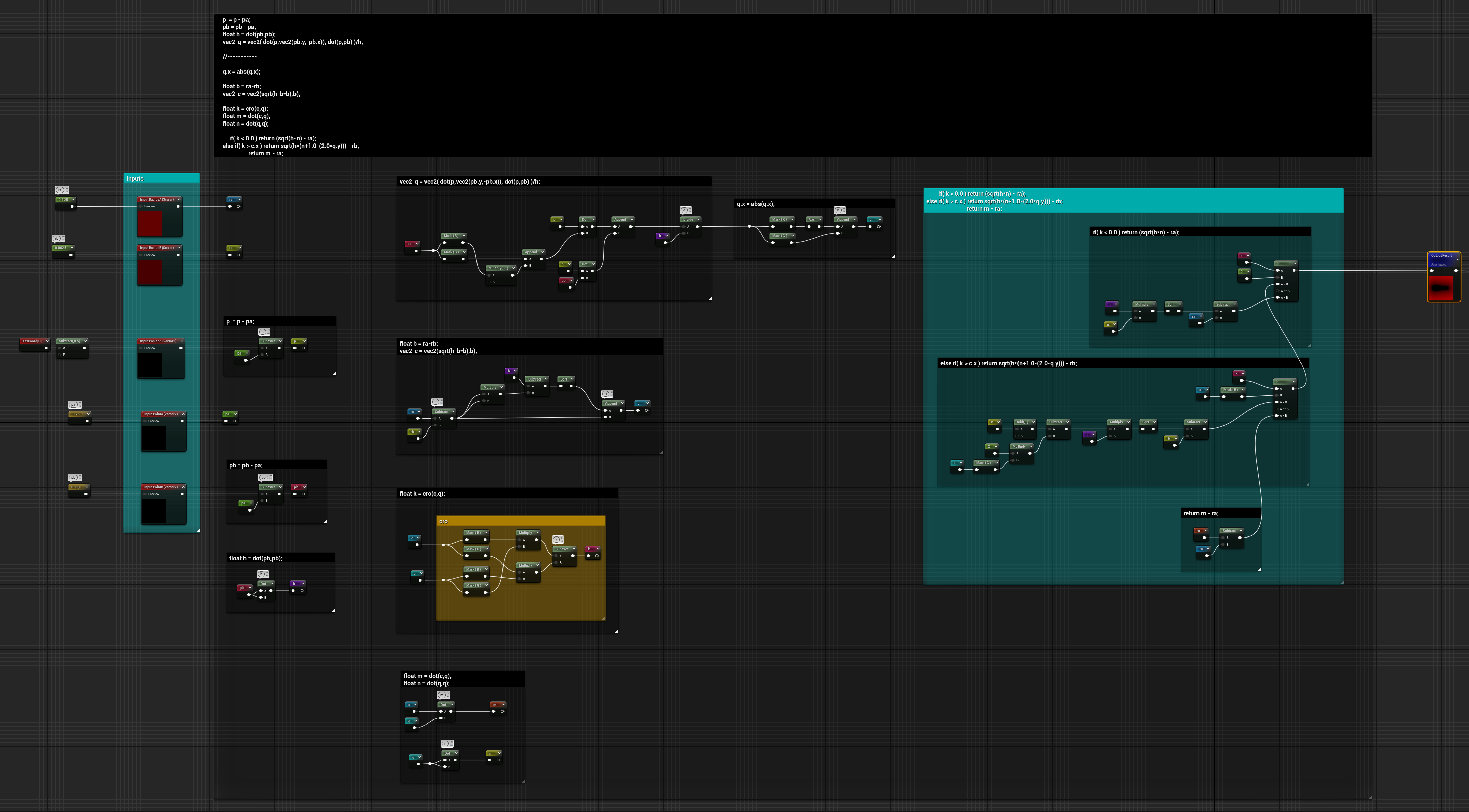

Uneven Capsule – Material Graph

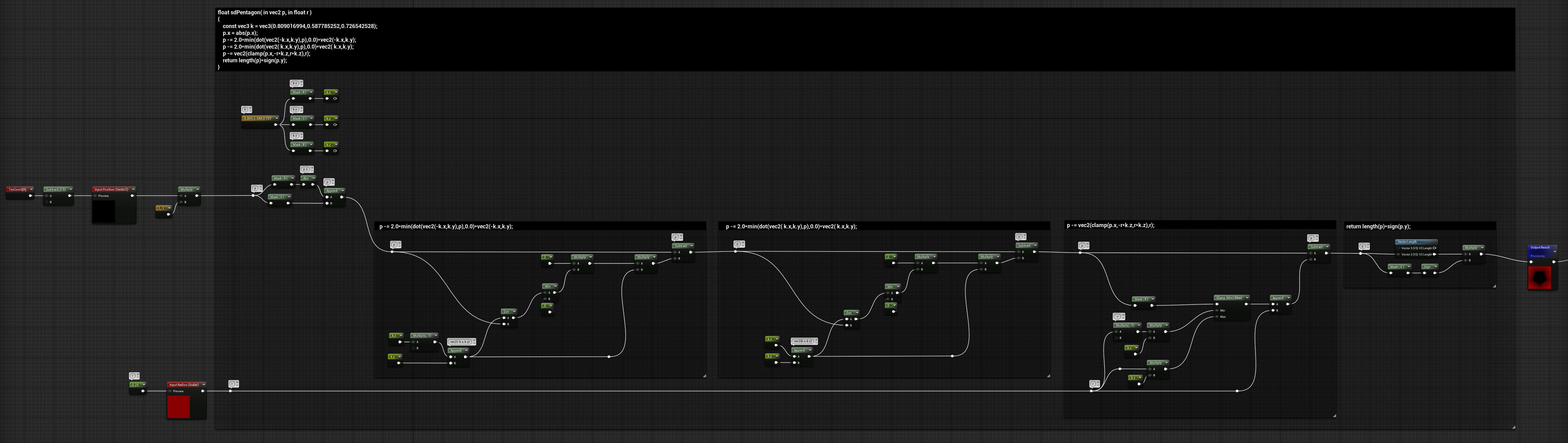

Pentagon – Material Graph

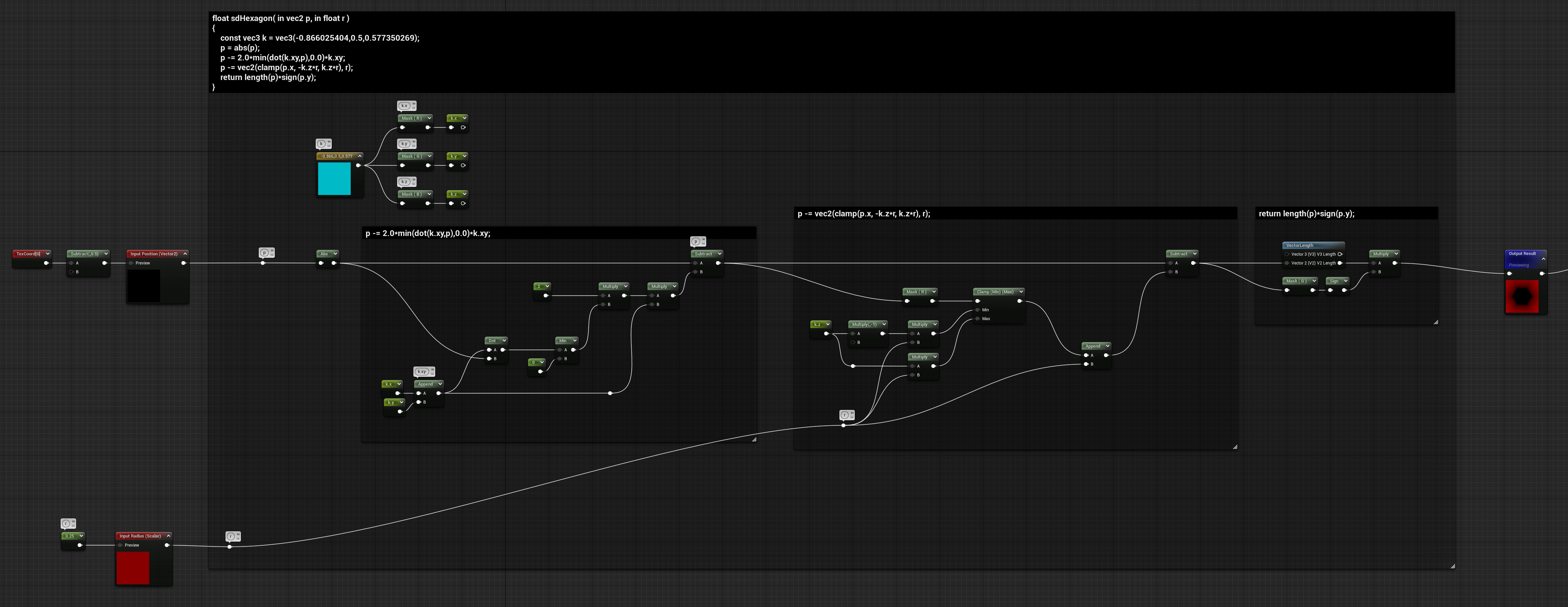

Hexagon – Material Graph

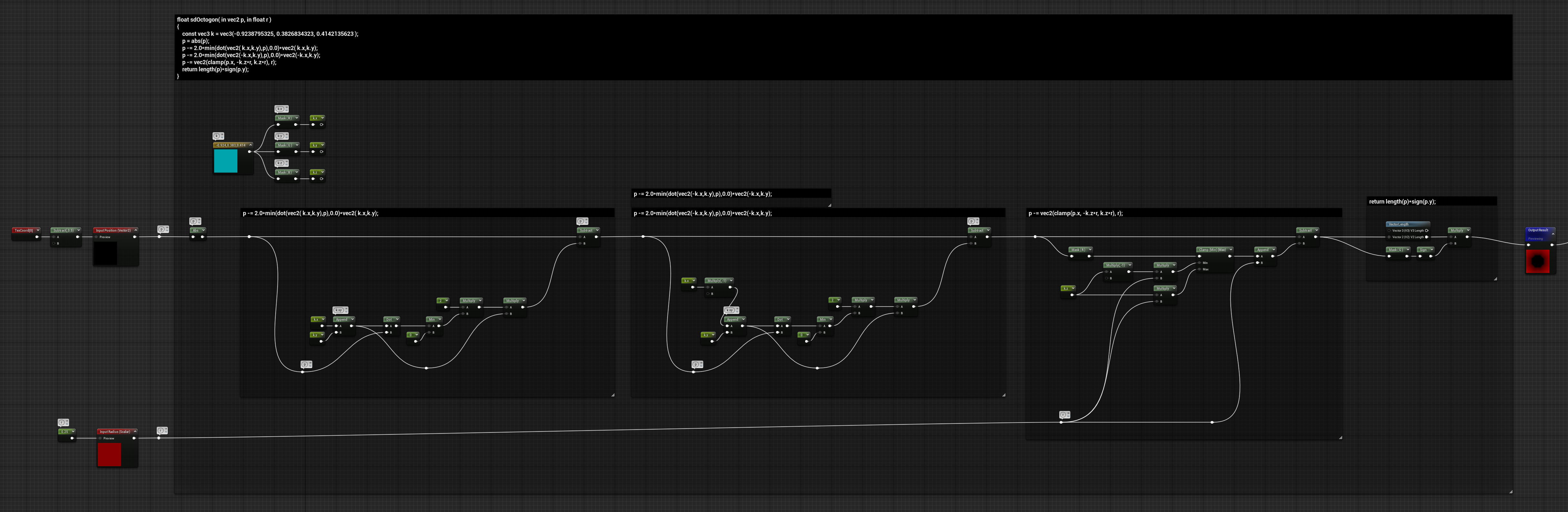

Octagon – Material Graph

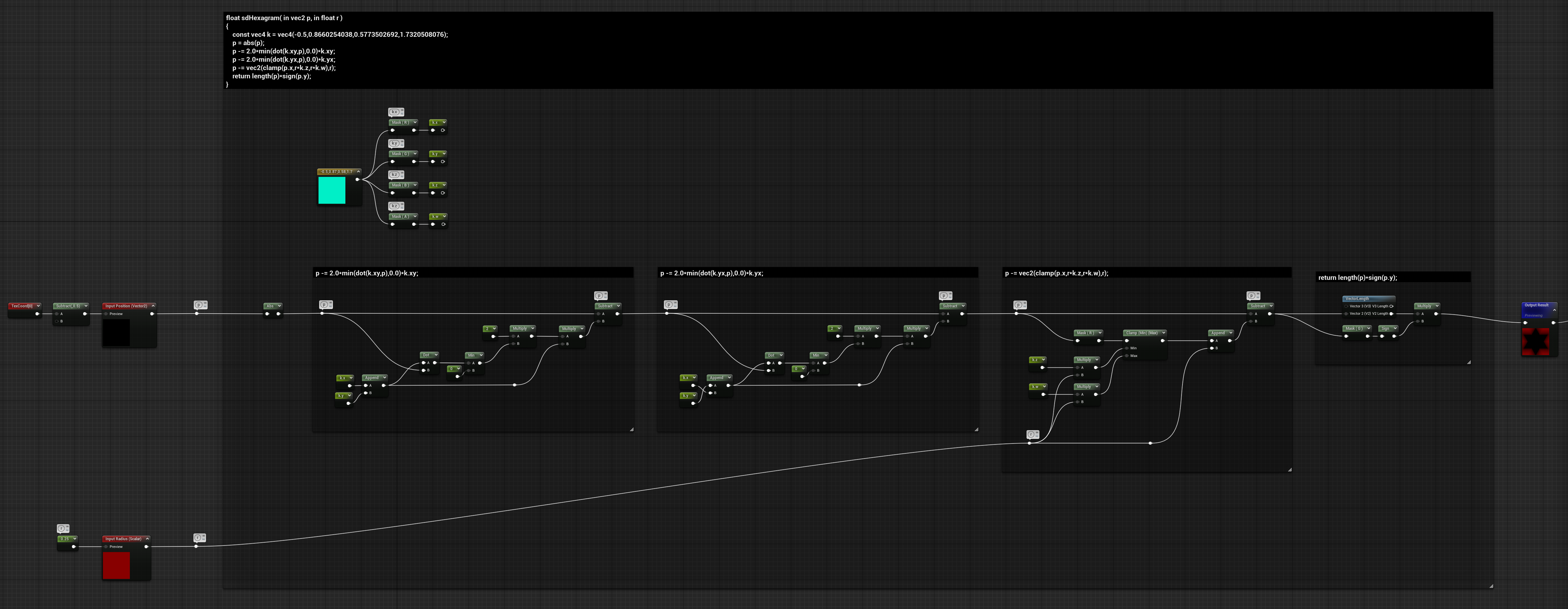

Hexagram – Material Graph

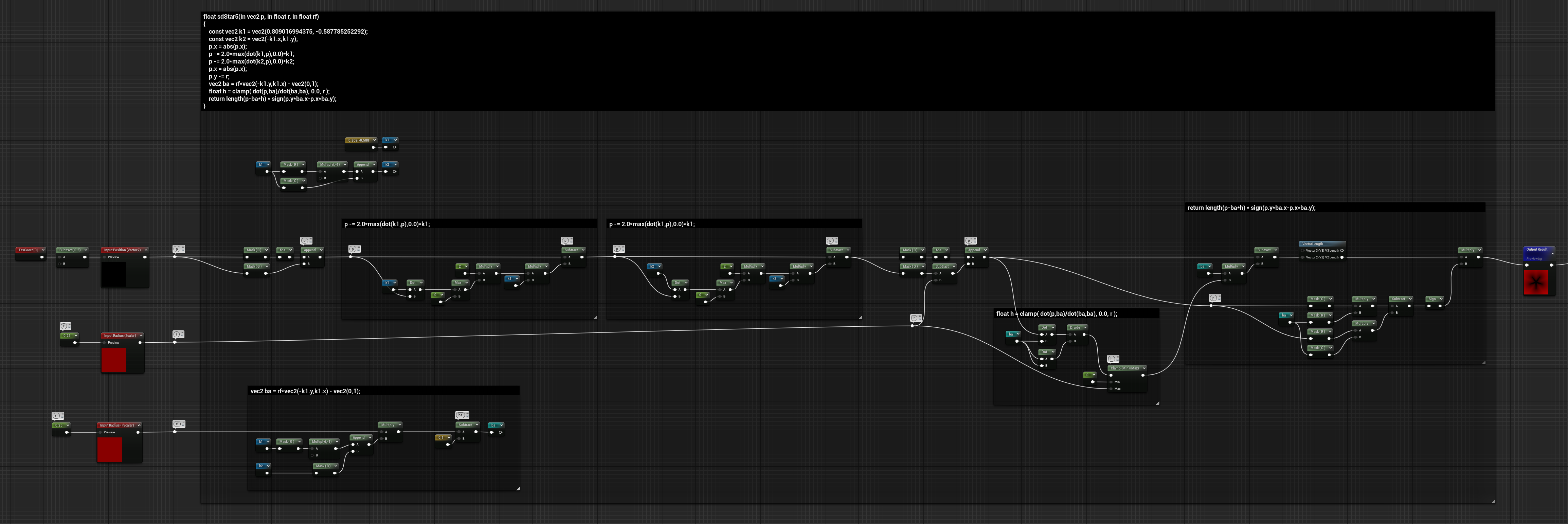

Star 5 – Material Graph

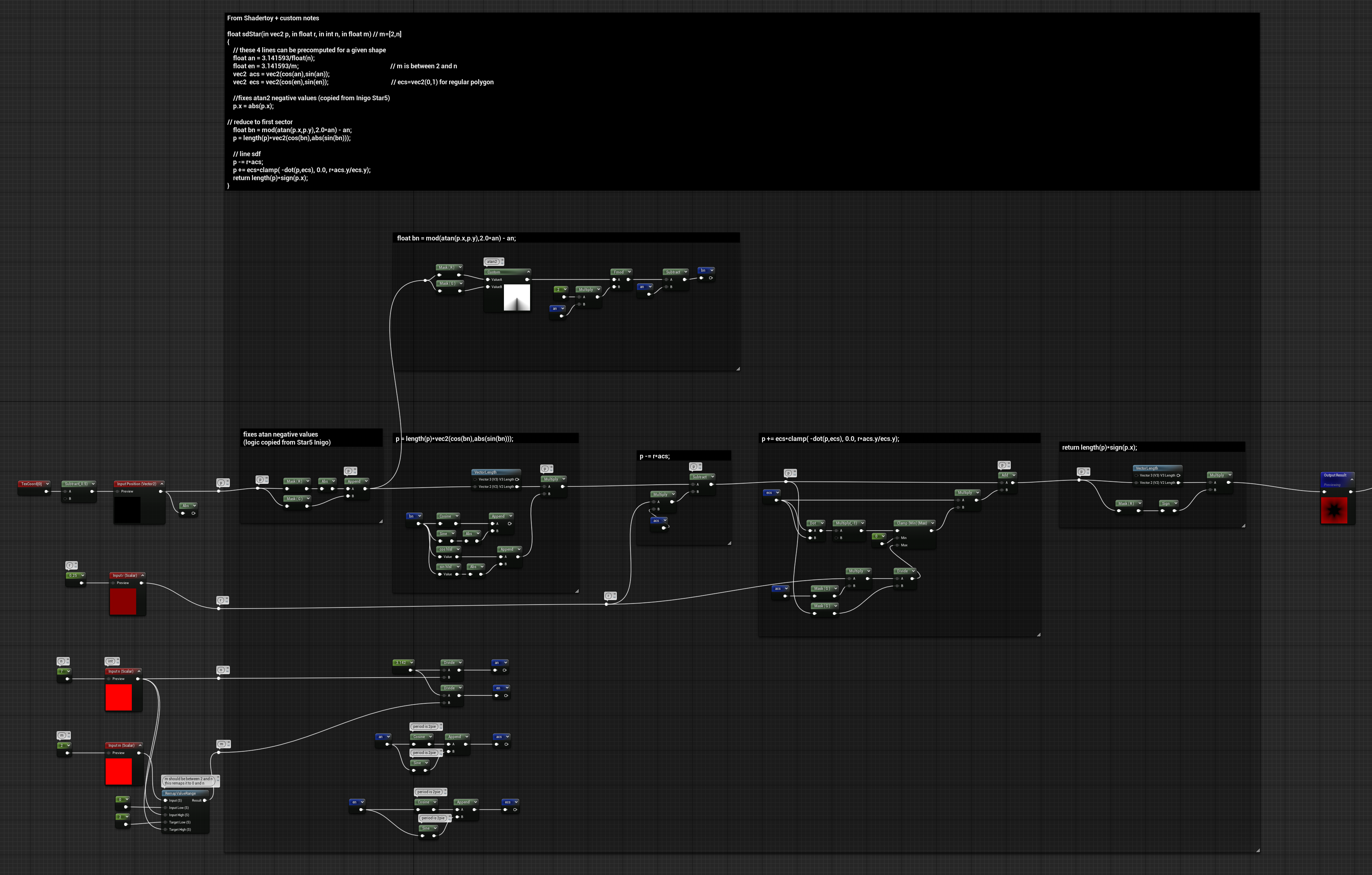

Star – Material Graph

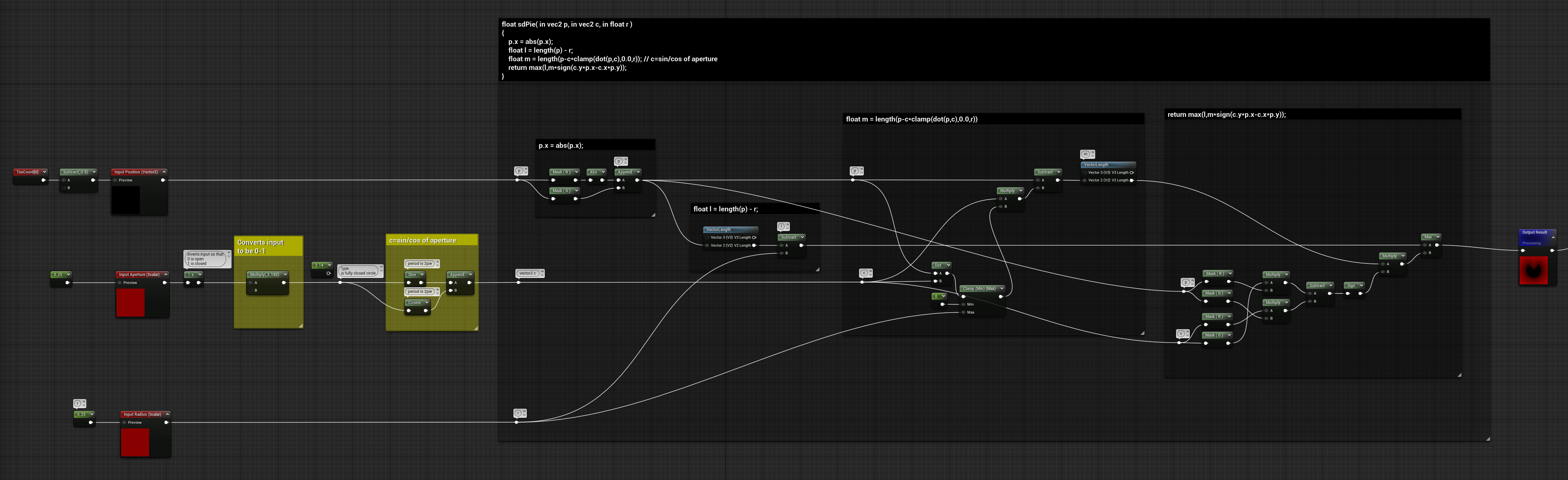

Pie – Material Graph

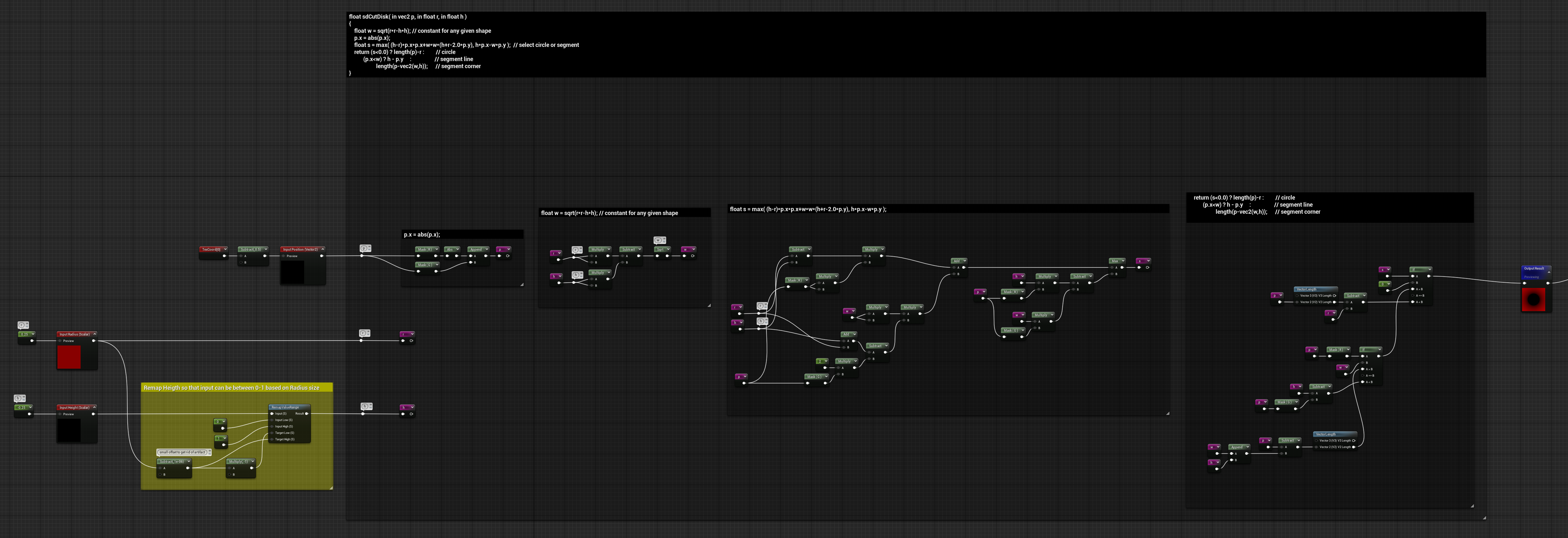

Cut Disk – Material Graph

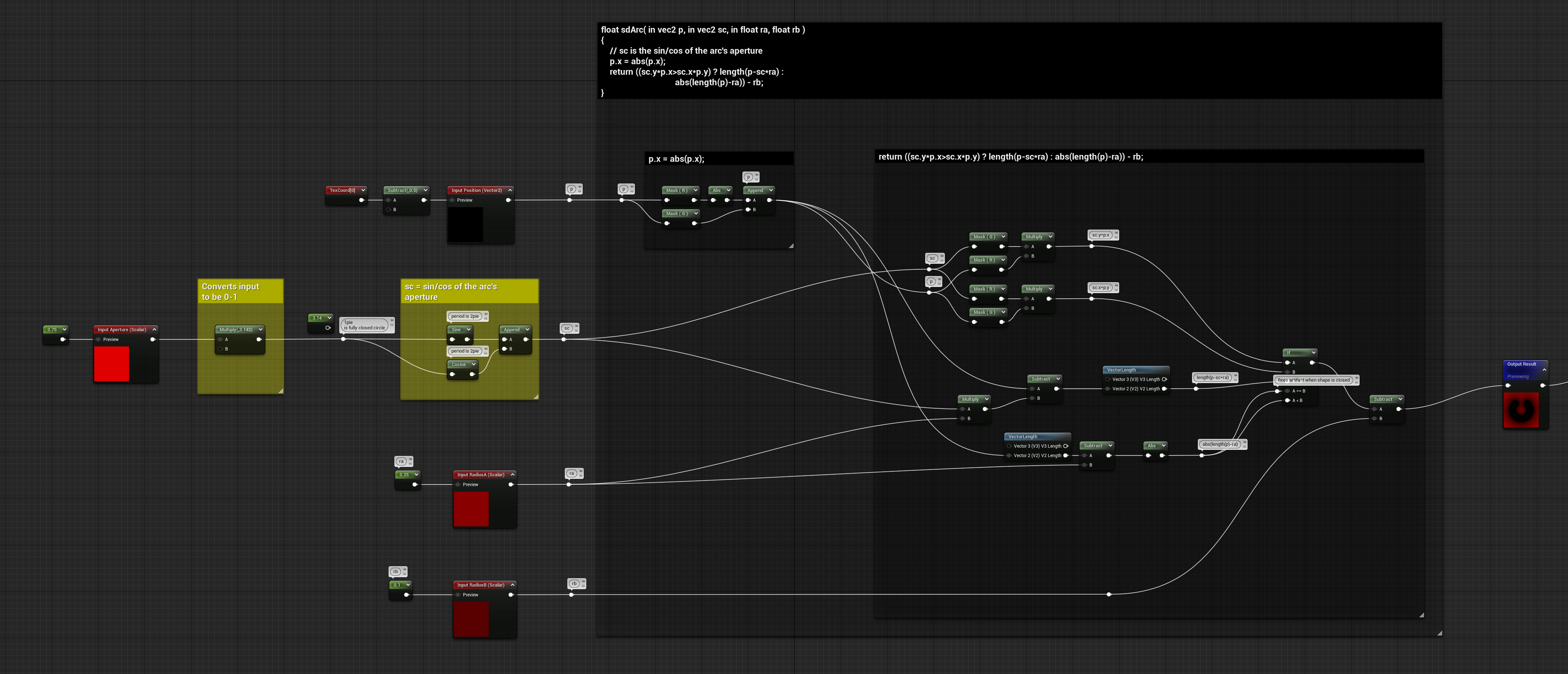

Arc – Material Graph

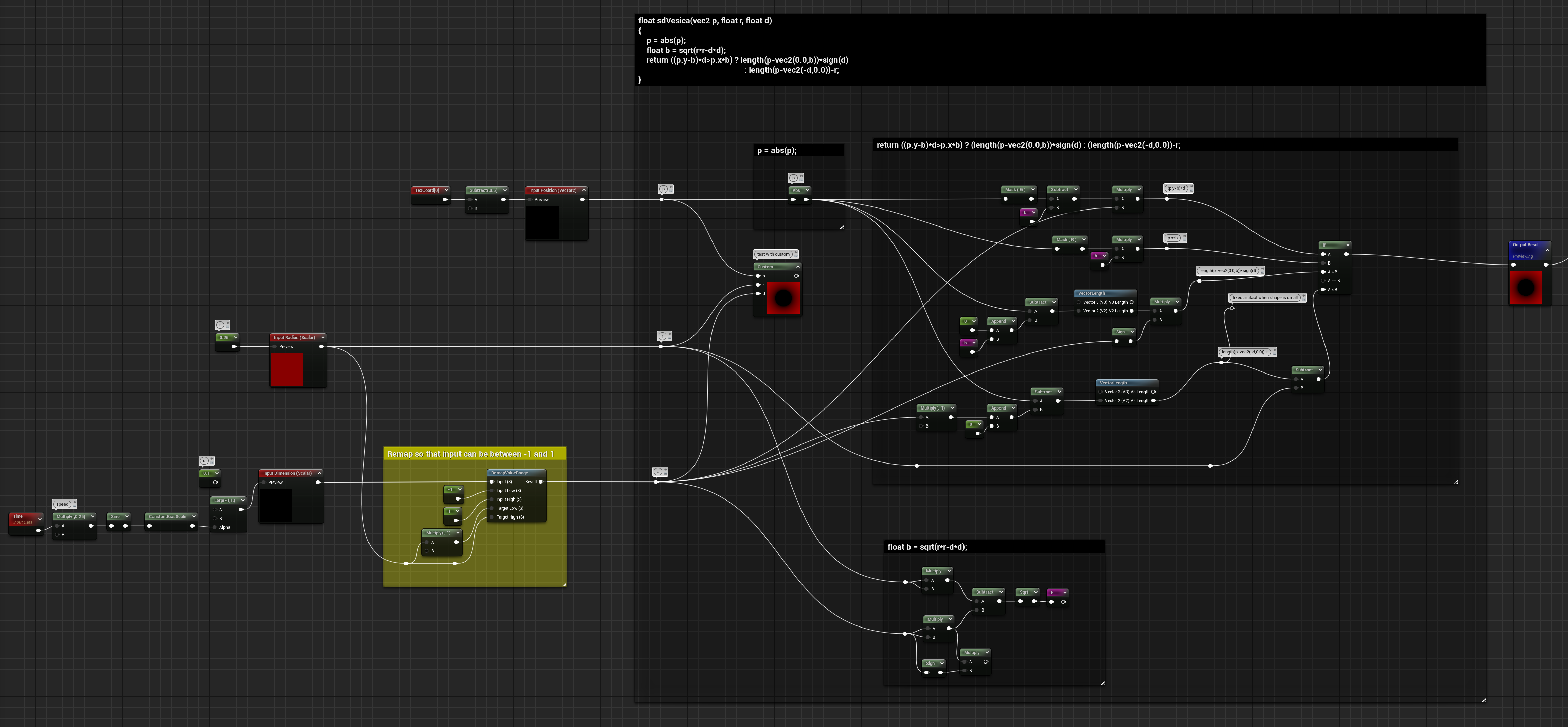

Vesica – Material Graph

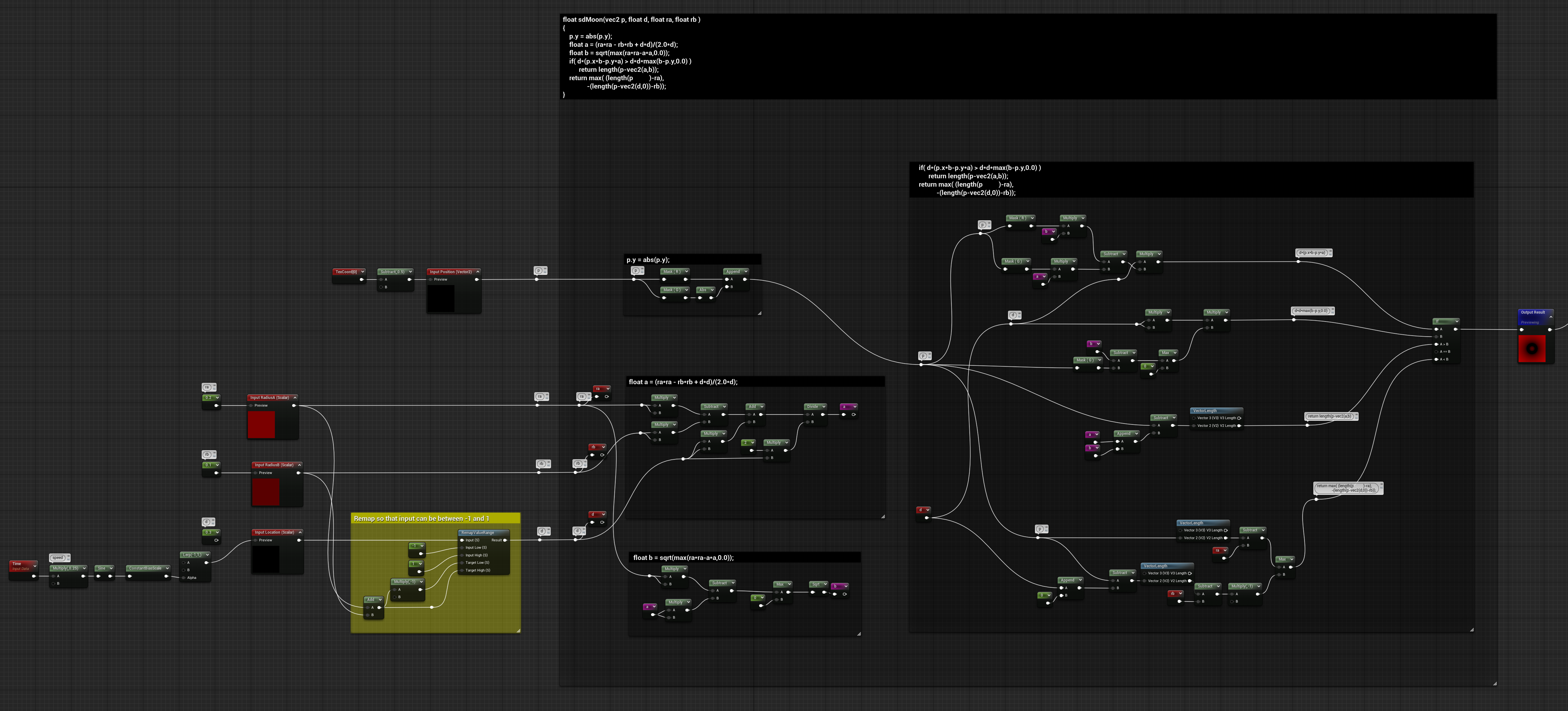

Moon – Material Graph

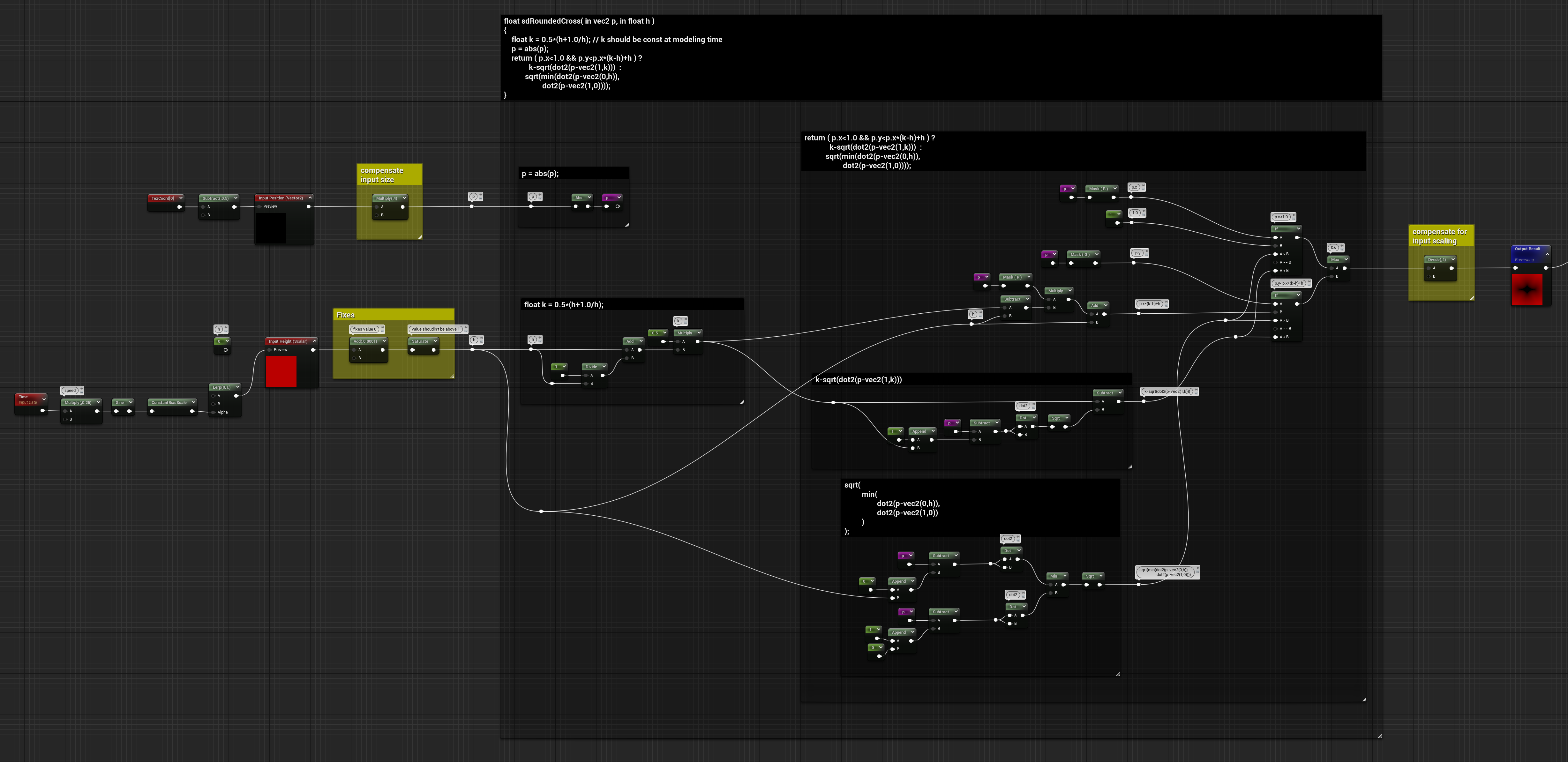

Circle Cross – Material Graph

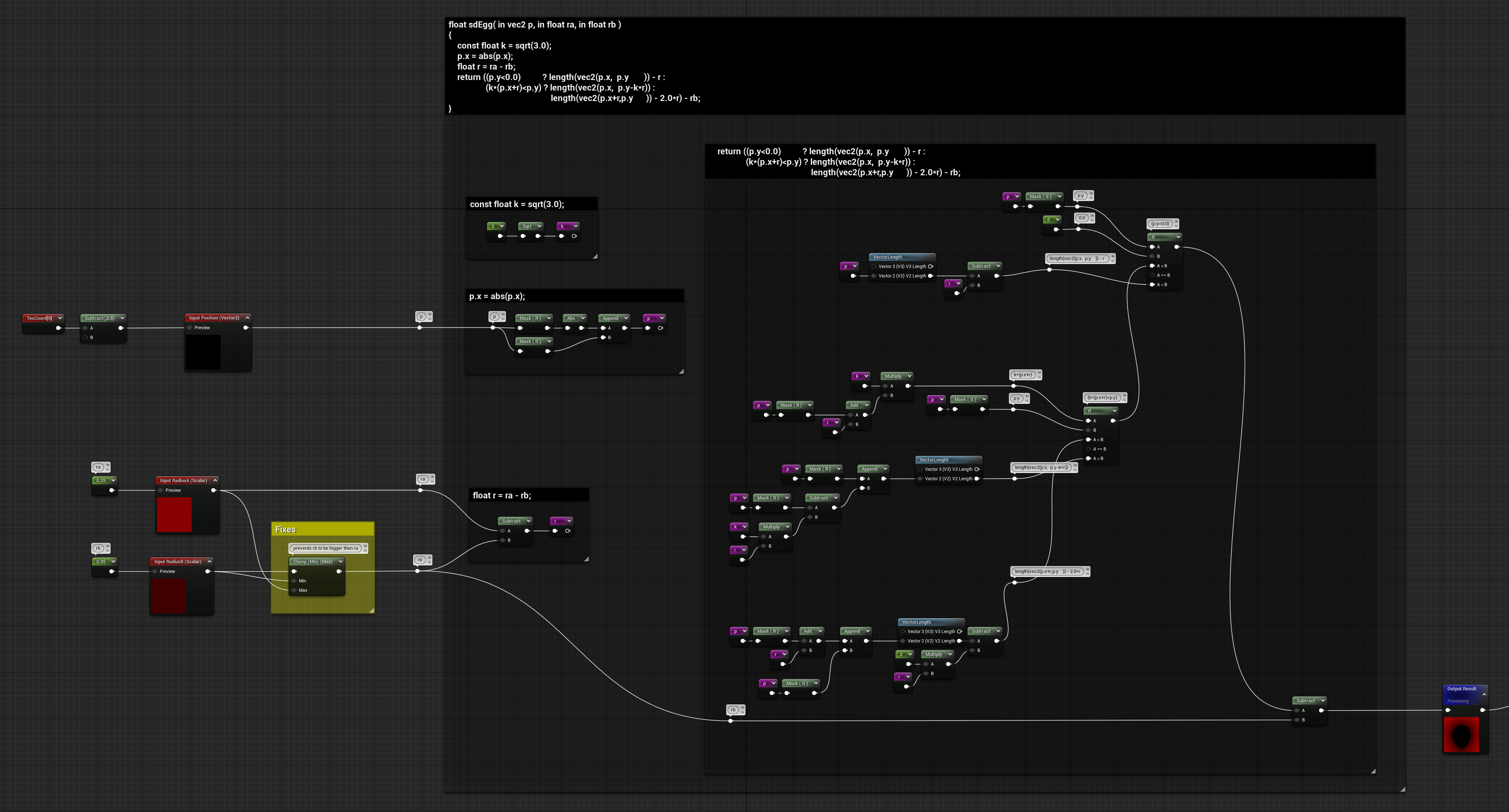

Egg – Material Graph

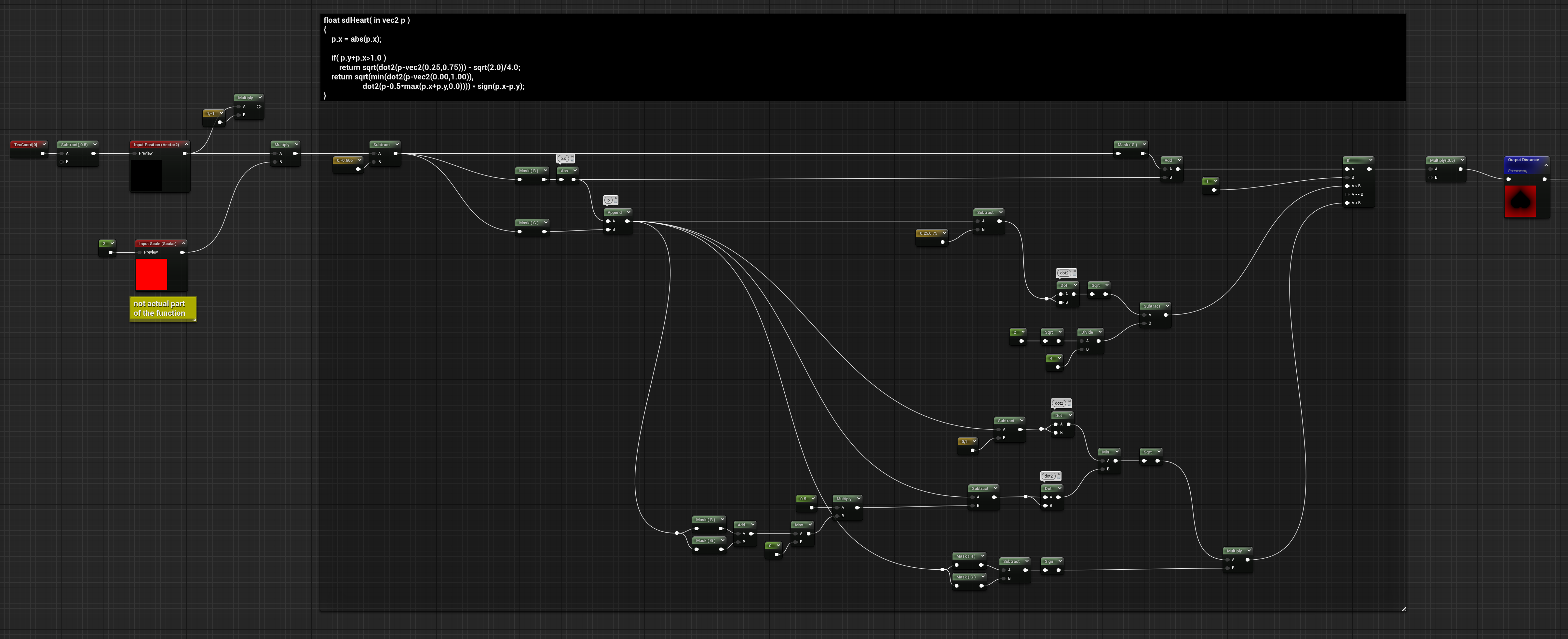

Hearth – Material Graph

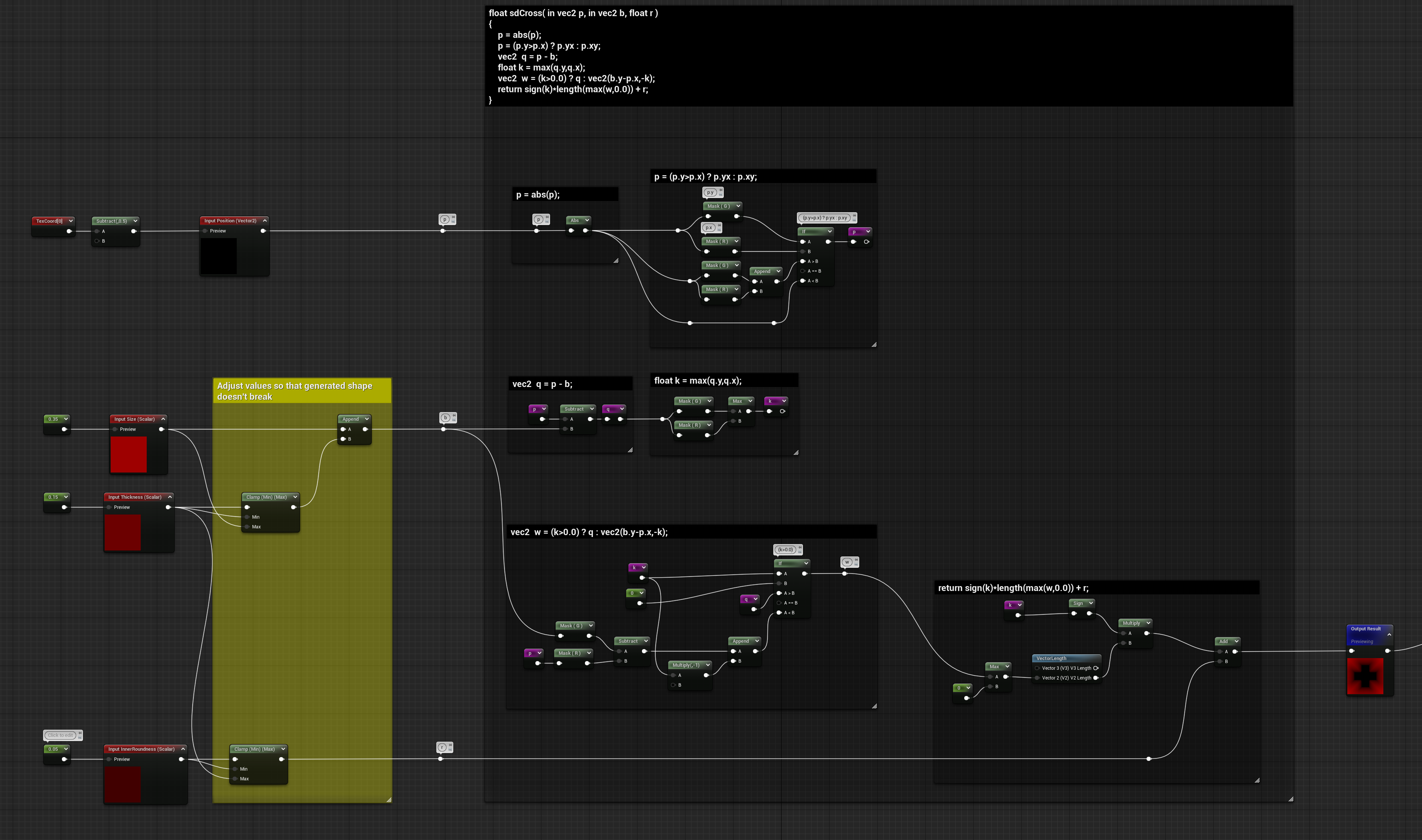

Cross – Material Graph

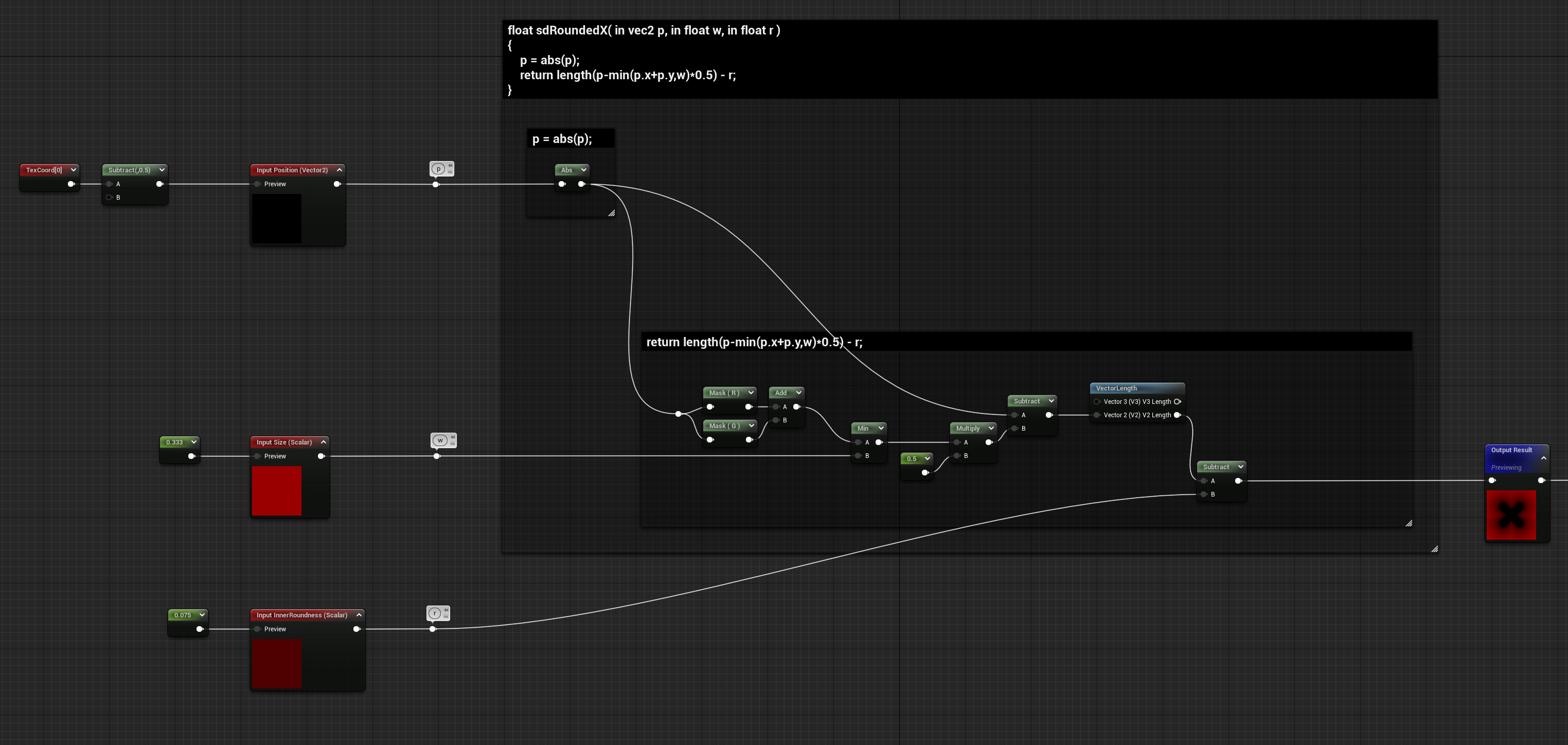

Rounded X – Material Graph

Polygon – Material Graph

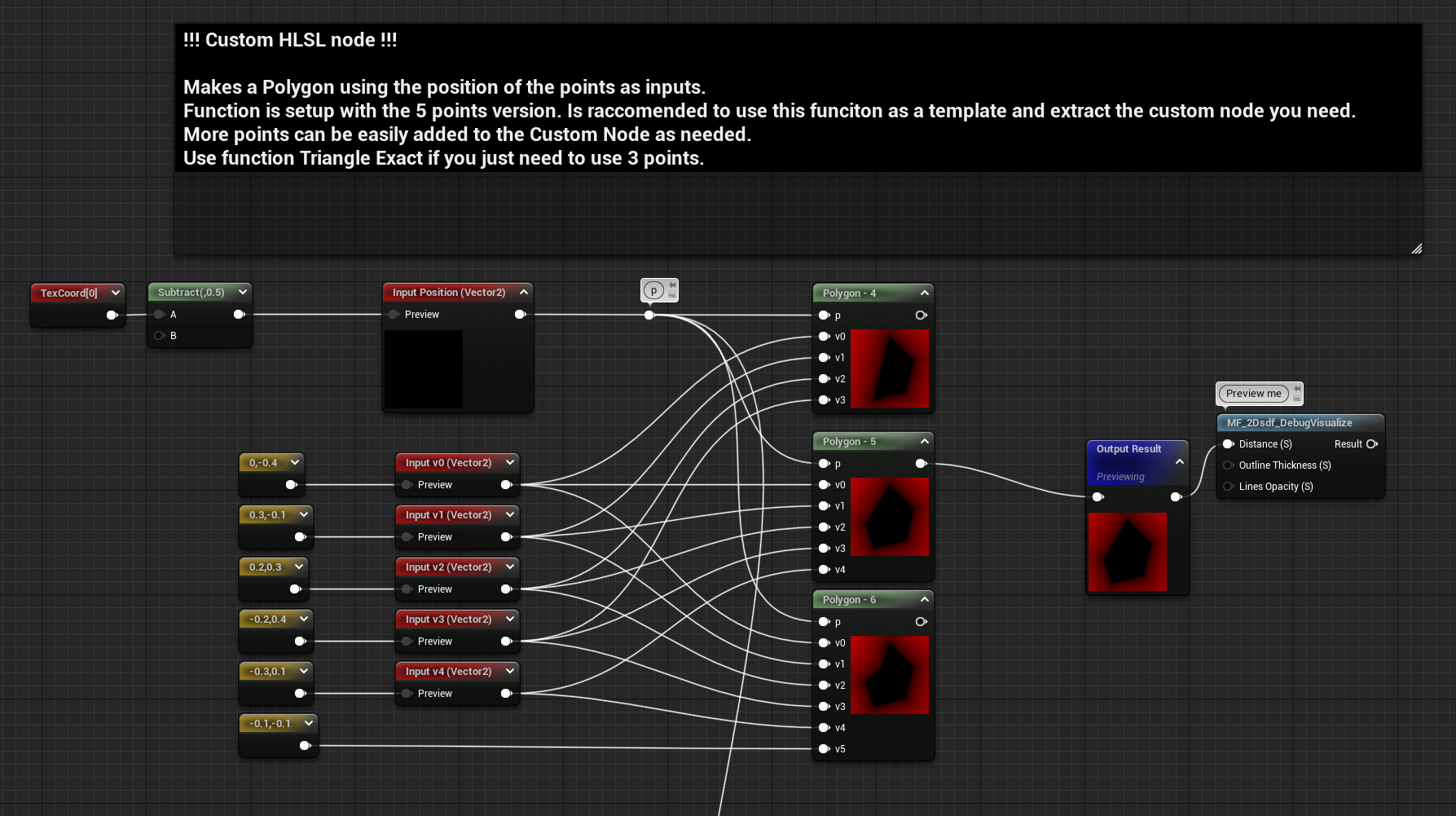

The only one that had to be in a custom hlsl node since it contains a for loop

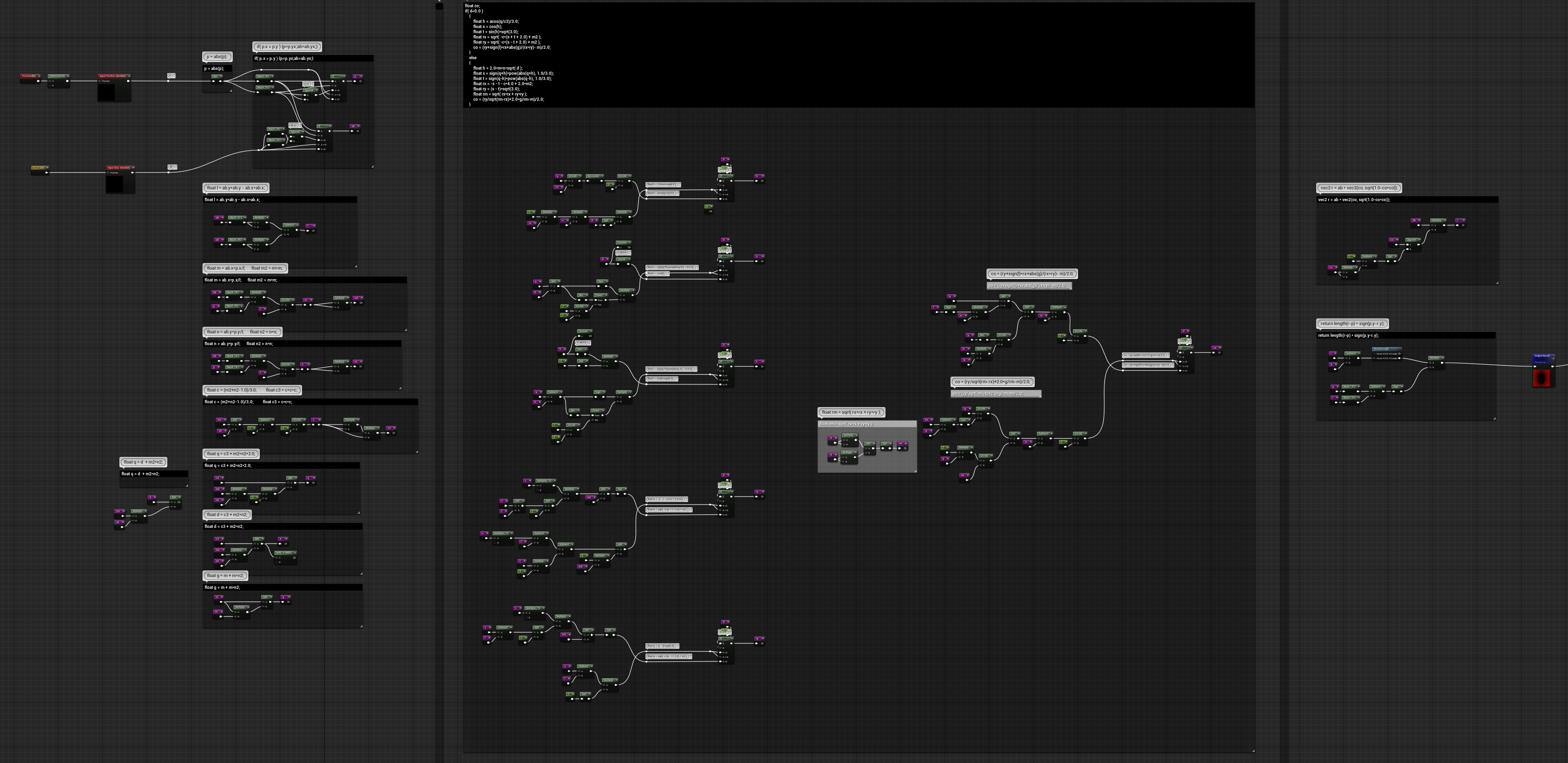

Ellipse – Material Graph

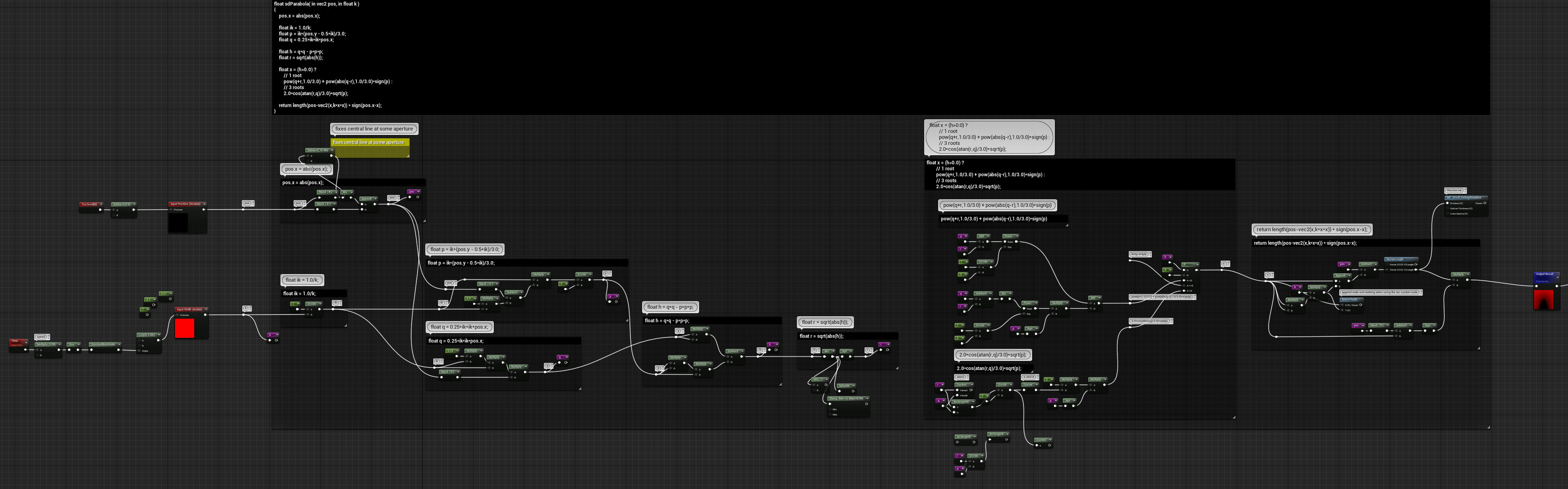

Parabola – Material Graph

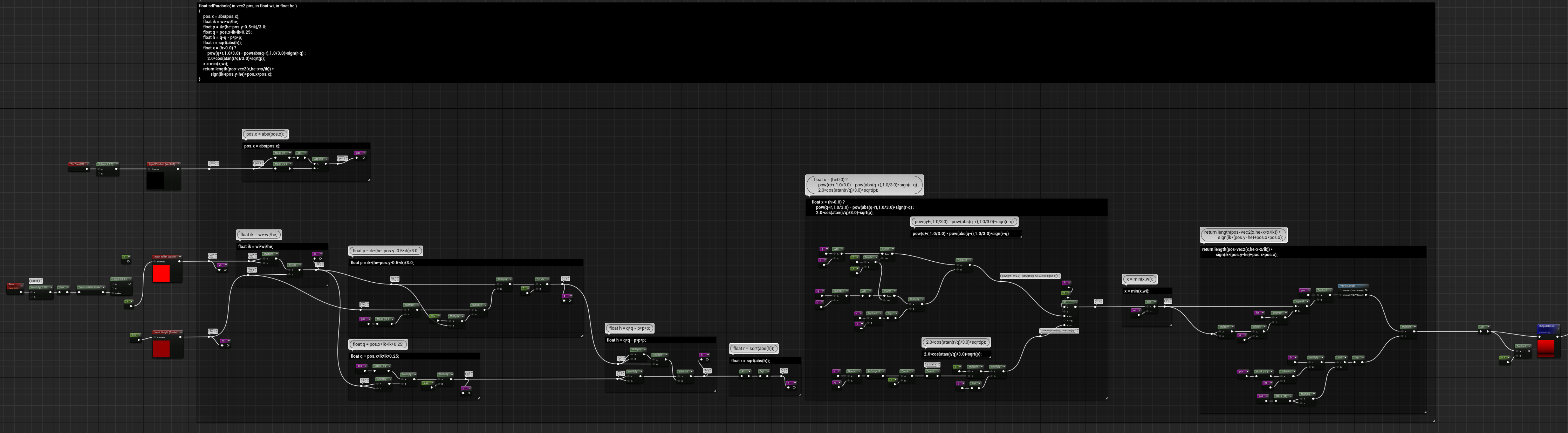

Parabola Segment – Material Graph

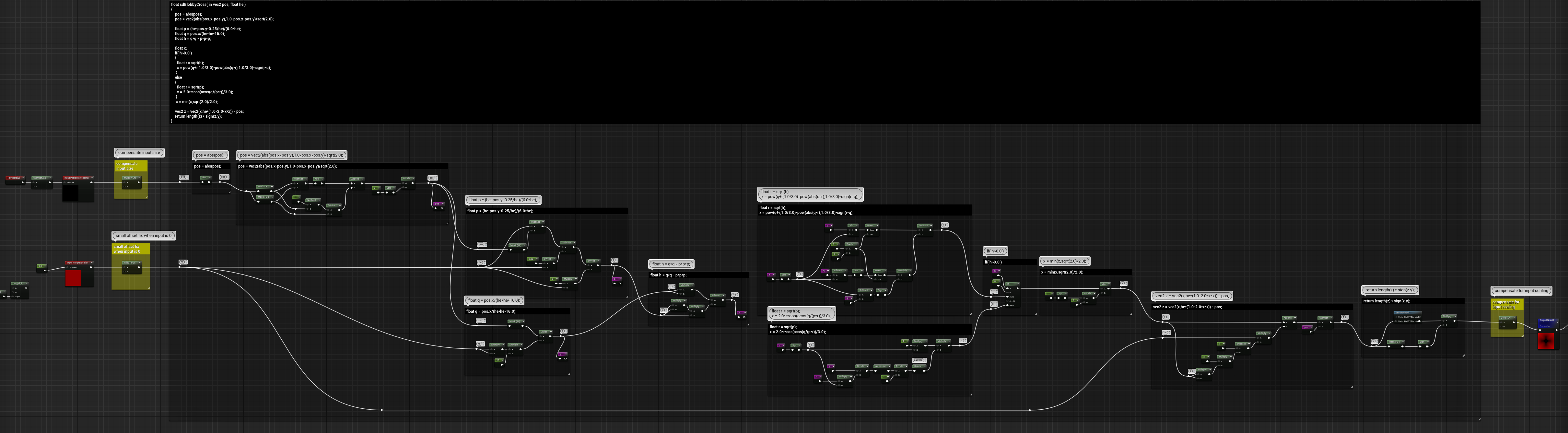

Bobbly Cross – Material Graph

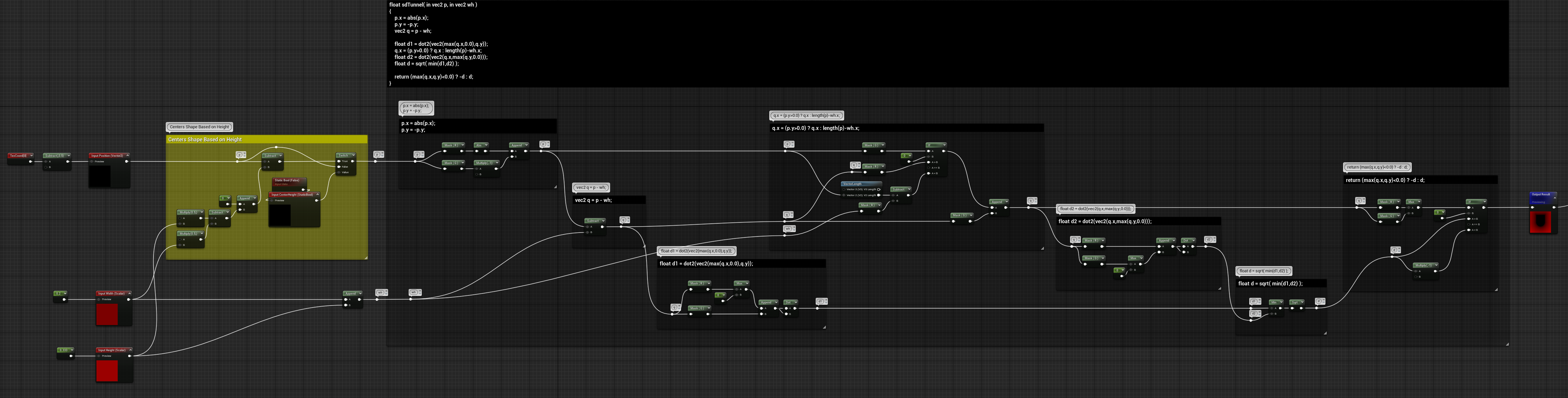

Tunnel – Material Graph
